INDUSTRIAL METAL STEEL HIGH GRADE QUALITY SKIP BINS
----------------------------------------------------------------
Dumpster bins is the ideal way to quickest way to raise the product and empty the bins quickly that makes the industries to save time and effort.
These bins is having a 6 leg lift for safety and security.
MODEL | LENGTH (MM) | WIDTH (MM) | HEIGHT (MM) | VOLUME (M3) | CAPACITY (KG) | FORK MIDDLE POCKET (MM) | WEIGHT (KG) |
GM1-05-10 | 1940 | 980 | 950 | 1.2 | 2000 | 700 | 360 |
GM2-05-20 | 2250 | 1310 | 950 | 2.0 | 3000 | 780 | 450 |
GM2-05-30 | 2870 | 1610 | 950 | 3.0 | 3000 | 810 | 510 |
INDUSTRIAL SKIP BINS FLAT PACK
----------------------------------------------------------------
Skip Bins Flat Pack is made and for construction or relevant industries for easy and quick of dumping of waste materials
Our Skip Bins Flat Pack is made with high grade steel with best quality in the market, it last for long time, greatly save for the time and cost for the repaint and rust.
Any size is available according to your needs, Custom Optional : Steel Thickness, Door and other parts according to your requirements.
MODEL | LENGTH (MM) | WIDTH (MM) | HEIGHT (MM) | VOLUME (M3) | WEIGHT | STEEL THICKNESS |
SBFP-01 | 3048 | 2438 | 1067 | 6 | 680 | Plate : 4MM / Optional w/ door 1x20GP can load 35 sets of Plate with the size of 4mm |
SBFP-02 | 4000 | 1750 | 1550 | 9 | 900 | Plate : 4MM / Optional w/ door |
INDUSTRIAL HYBRID SKIP BINS
---------------------------------------------------------------
Container type skip bins is designed for industrial large solutions for any type of industries. it is easy to keep in a container ban for any type of usage requirement for the industrial needs.
MODEL | LENGTH (MM) | WIDTH ( MM) | HEIGHT (MM) | VOLUME (M3) | WEIGHT (KG) | STEEL THICKNESS |
HBSB-08 | 5000 | 1930 | 950 | 8.0 | 1680 | |
HBSB-10 | 5800 | 2200 | 800 | 10.0 | 1801 | |
HBSB-12 | 5800 | 2200 | 950 | 12.0 | 1907 | Bottom & Sides 5MM |
HBSB-15 | 5800 | 2200 | 1200 | 15.0 | 2078 | |
HBSB-23 | 5800 | 2200 | 1800 | 23.0 | 2459 | |
HBSB-27 | 5800 | 2200 | 2100 | 27.0 | 2695 | |
HBSB-30 | 5800 | 2200 | 2350 | 30.0 | 2867 |

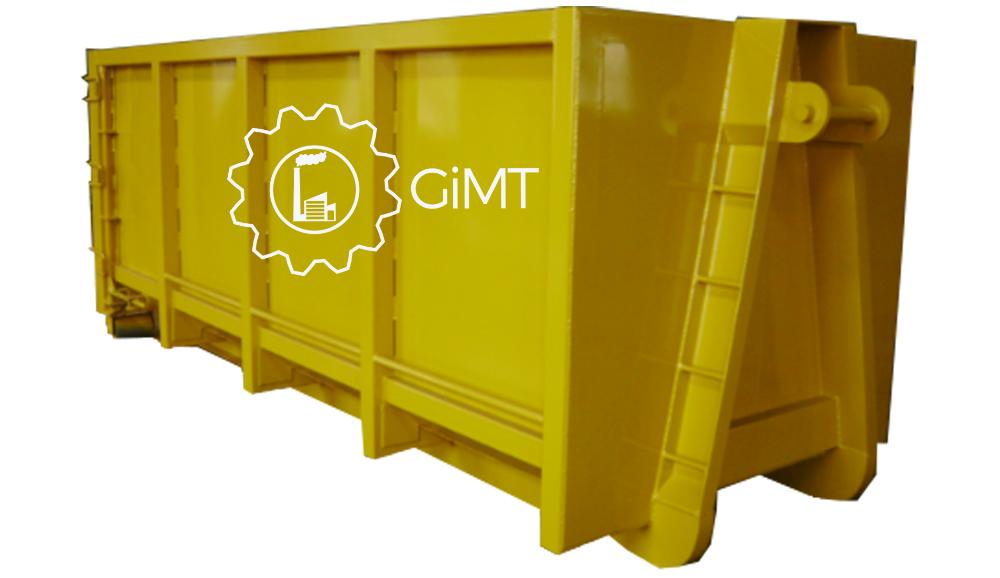

INDUSTRIAL LUGGER CONTAINER SKIP BINS
-----------------------------------------------------------------
Industrial Lugger Container Skip Bins is designed for all types of industrial industries. Is ideal for all dumping solutions is was designed for quick and easy, cost efficient and environmentally.
Our Lugger Containers it was structured designed with 1.3" of Channel exterior bracing reinforced the main edge of the bin for durability when dumping. 3.3/16 " Plated body with 1/4" plated metal steel floor. Primed finish as per your choice color requirements. both of the sides and bottom was originally fabricated designed from piece of metal in order to avoid seams for longer and lasting high quality grade drain holes floors.
MODEL | LENGTH (MM) | WIDTH ( MM) | HEIGHT (MM) | VOLUME (M3) | WEIGHT (KG) | NOTES |
LCSB-6 | 3000 | 1700 | 1200 | 6.0 | 600 | 9 other small bins |
LCSB-7 | 3600 | 1700 | 1200 | 7.0 | 716 | |
LCSB-8 | 4000 | 1700 | 1200 | 8.0 | 786 | |
LCSB-11 | 4500 | 1700 | 1500 | 11.0 | 957 | 4 other small bins |
LCSB-17 | 5000 | 1700 | 2000 | 17.0 | 1214 |
INDUSTRIAL WASTE SKIP BINS
---------------------------------------------------------------
A industrial Waste Skip Bins is an ideal for all Type of industries is design for all Industrial needs.
Our Waste Skip Bins is designed with a high grade steel welded by CO2 machine, with strong steel welded fabricated with sand rub decaling, with a beautifully good painted colors, with drain holes in floors.
MODEL | LENGTH (MM) | WIDTH ( MM) | HEIGHT (MM) | VOLUME (M3) | WEIGHT (KG) |
WSB-2 | 1800 | 1800 | 1200 | 6.0 | 320 |
WSB-4 | 3200 | 1800 | 1200 | 7.0 | 525 |
WSB-6 | 5000 | 1800 | 1200 | 8.0 | 756 |

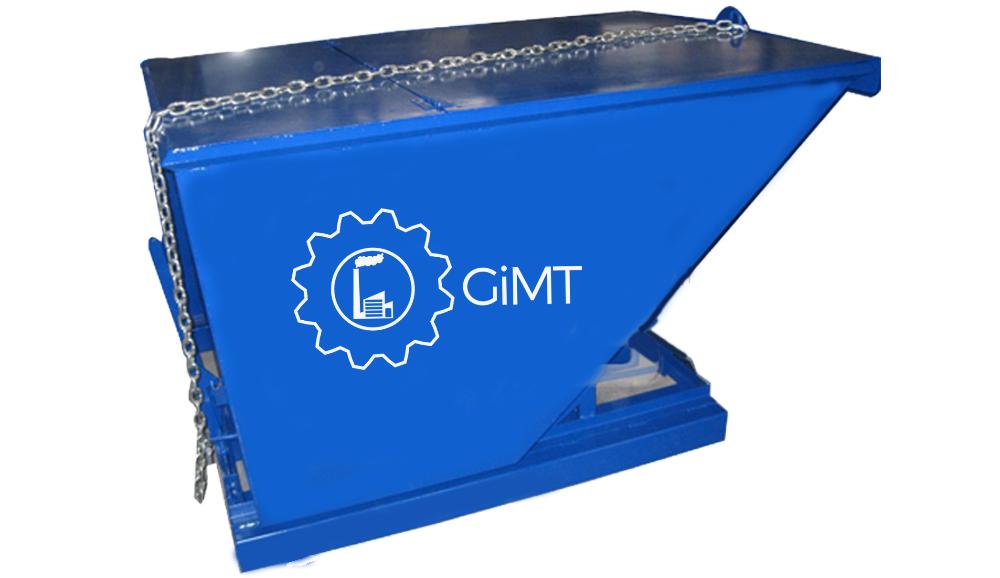

INDUSTRIAL TIPPING SKIP BINS
----------------------------------------------------------------
Industrial Tipping Skip Bins is design for wide variety of application, super-low level height design, it is design also for easy operation and safe and practical. it was made for the best tool for dump waste disposal, such as lathe, cutting machine, sawing machine and alike.
Our TIpping Skip Bins is heavy duty that will last for long time and manufactured from 3mm plate.
It was ideally suited to heavy waste material included metal timber and building site rubble. it has a feature called semi-auto release mechanism is activated by a forklift operator in pulling the spring auto mechanism device.
MODEL | SIZE ( H x W x D ) (MM) | VOLUME (M3) | WIDTH OVER FORK (MM) | FIT TO FORK WIDTH (MM) |
TSB-15 | 580 x 780 x 850 | 0.15 | 705 | 280 |
TSB-35 | 780 x 780 x 1250 | 0.35 | 585 | 210 |
TSB-60 | 870 x 910 x 1550 | 0.6 | 585 | 210 |
TSB-90 | 1080 x 1080 x 1500 | 0.9 | 730 | 280 |
TSB-110 | 1080 x 1080 x 1850 | 1.1 | 705 | 280 |
TSB-160 | 1270 x 1080 x 2100 | 1.6 | 705 | 280 |
TSB-200 | 1270 x 1315 x 2100 | 2.0 | 705 | 280 |
TSB-250 | 1250 x 1560 x 2100 | 2.5 | 1126 | 280 |
TSB-300 | 1250 x 1860 x 2100 | 3.0 | 1126 | 280 |
