CNC MACHINES

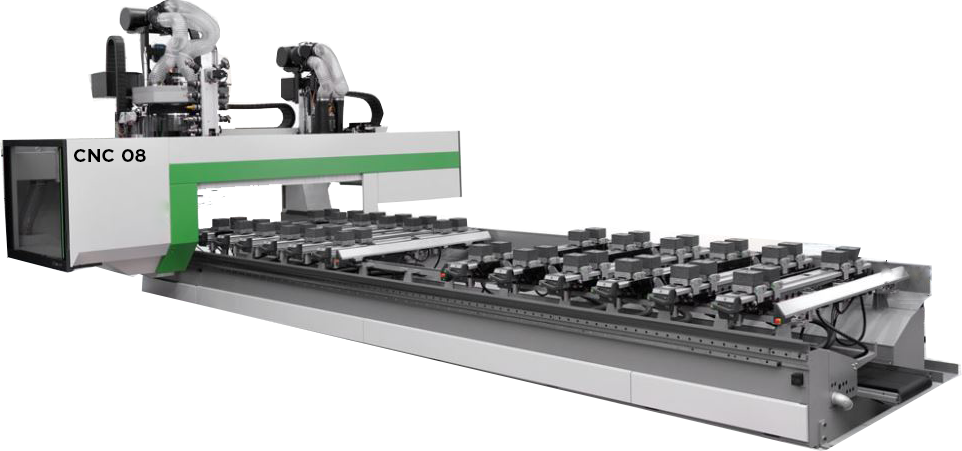

CNC 08 - NC EDGEBANDING MACHINING CENTRE

with technological solutions that highlight and support technical expertise as well as process and material knowledge. CNC 08 is the new processing
centre for manufacturing furniture, staircase and door and window components of any shape, size and thickness with ease. It was designed to be used for heavy-duty processing that requires large-size tools and aggregates.

MACHINE FEATURES

  • Performance above the industry standard.
  • More machining operation options.
  • Perfect execution of machining operations.
  • Cycle-time reduction for high productivity.
  • High-tech becomes accessible and intuitive.

CYCLE TIME REDUCTION FOR HIGH PRODUCTIVITY



Independent Y axis allows tool changes whilst the  machine is running , using the largest possible number of tools available in the magazine. the shuttle in the vertical chain magazines speeds up the tool change operation.

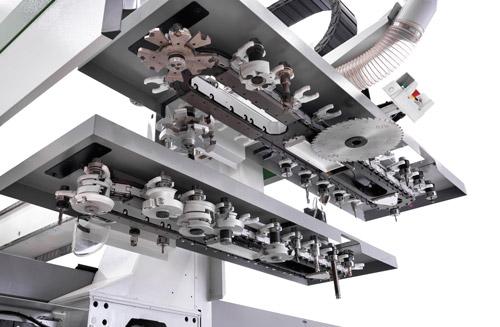

Double tool magazine on the X tool carriage with 44-66  positions which guarantee quick toll change and  reduced processing times. It can accommodate a saw blade with a diameter of up to 400mm.

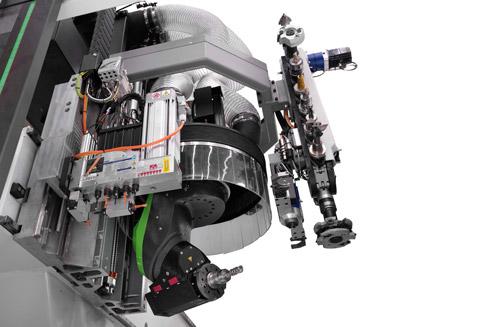

Vertical chain tool magazine on Y axis with 10-15 positions.

MANY SOLUTIONS FOR PERFECT FINISHES

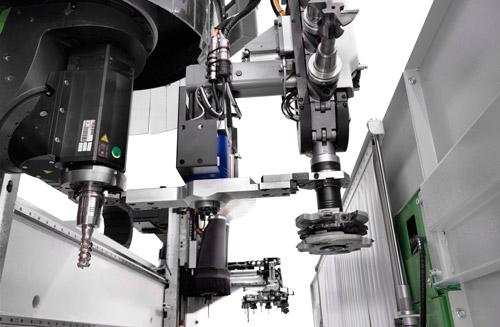

A COMPLETE RANGE OF AGGREGATES FOR ALL MACHINING OPERATIONS

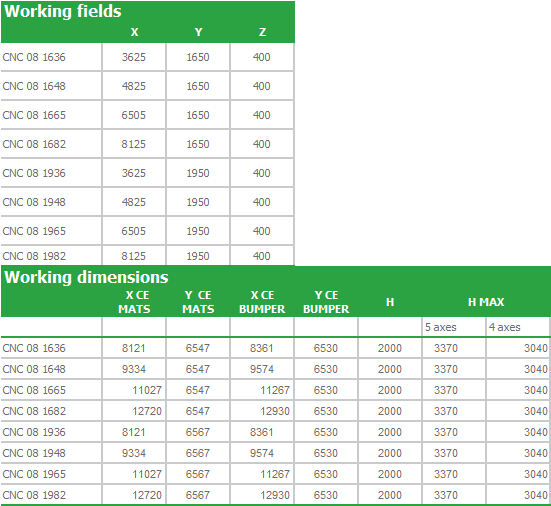

TECHNICAL SPECIFICATION
