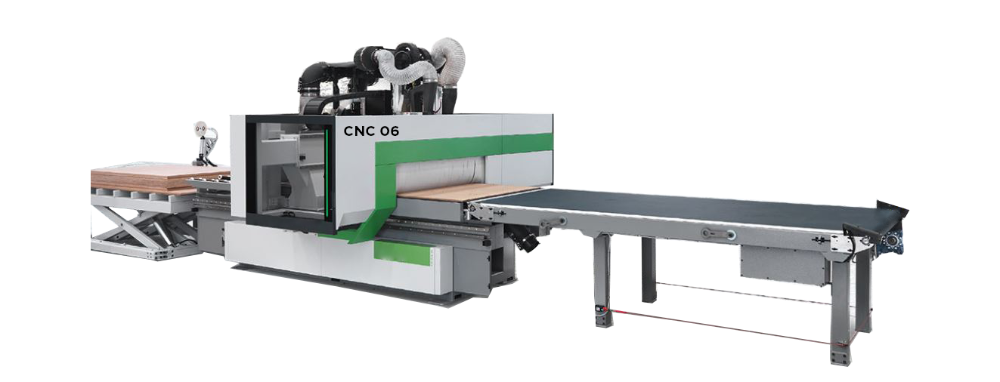

CNC 06 - NC PROCESSING CENTRE

with high-tech, innovative solutions for nesting operations. CNC 06 is the new NC processing centre with gantry structure and FT work
table not only for the nesting of panels, small doors, furniture components and frames for sofas, but also for Plexiglass, plastic, Alucobond, aluminium and
acrylics.

MACHINE FEATURES

  • Can be fully integrated into a working cell.
  • Increase of manufacturing capacity.
  • Flexibility to handle both large and small panels of varying thickness.
  • Optimized cleaning of machined component and work area.
  • High-tech becomes accessible and intuitive.

HIGH PRECISION AND RELIABILITY OVER TIME



High Precision

robust and well-balanced structure, designed to handle demanding machining requirements without compromising product quality.

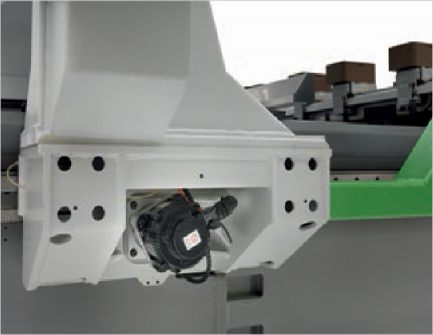

Higher motor power

increases acceleration up to 5 m/s2 and speed up to 120 m/min.

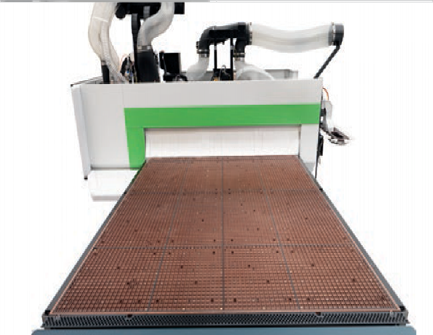

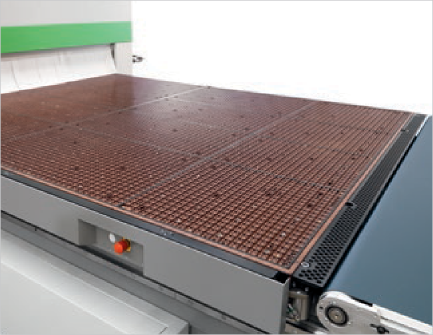

Advanced work table technology

Multi-zone technology seamlessly and
automatically adapts the vacuum of the
machine to the different board sizes that
the customer has in his production.

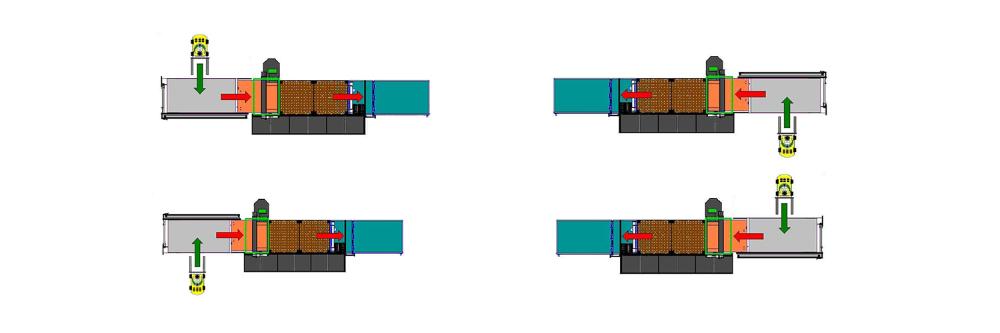

CAN BE FULLY INTEGRATED INTO  A WORKING CELL

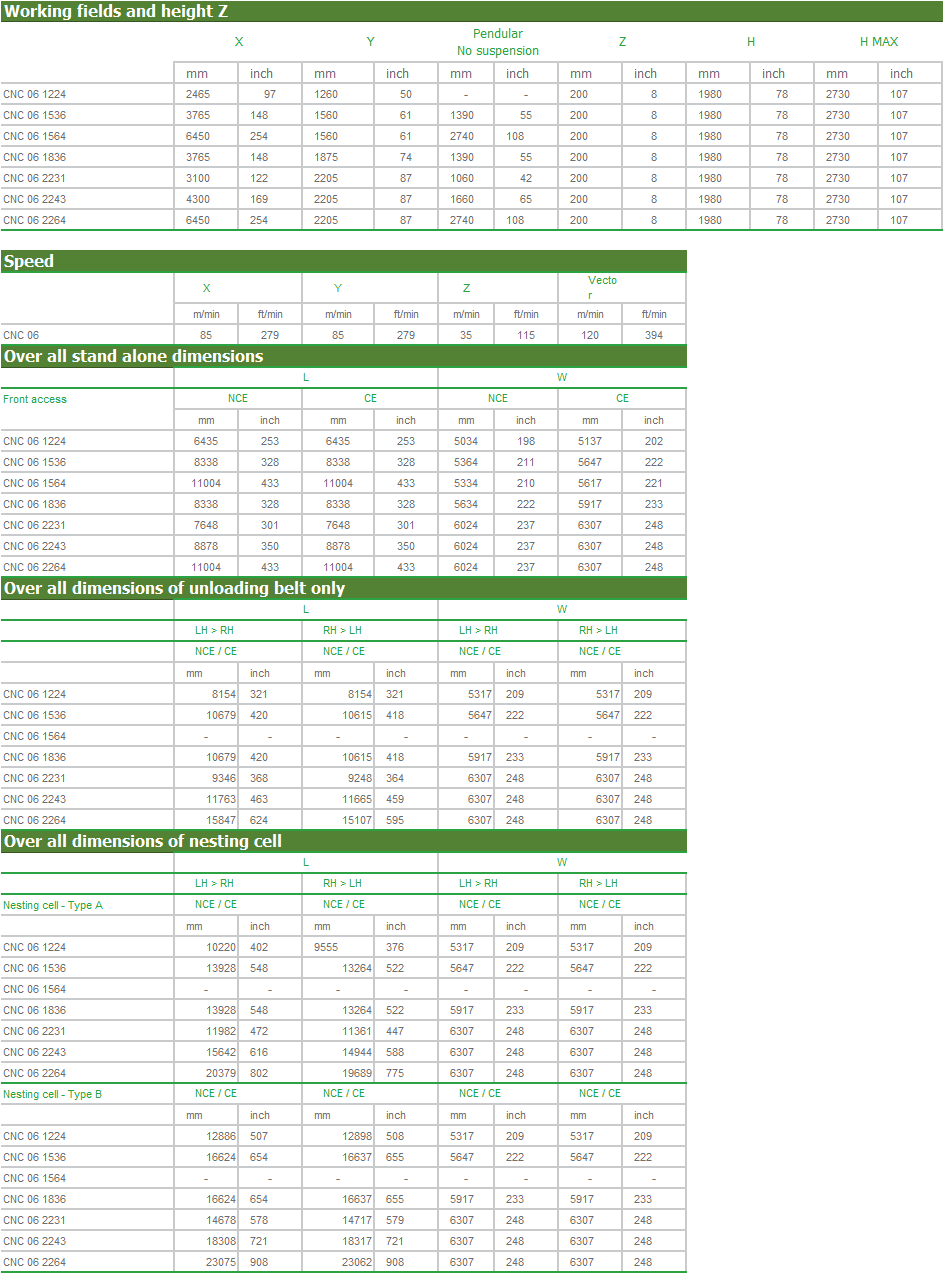

TECHNICAL SPECIFICATION
