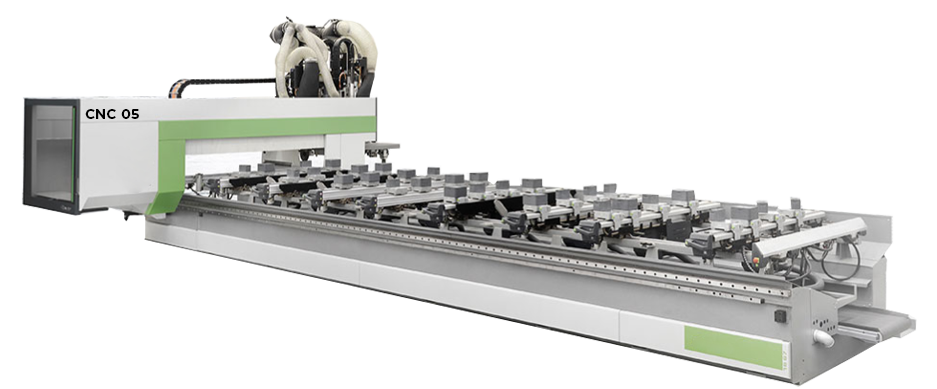

CNC 05 - NC PROCESSING CENTRE

with technological solutions that enhance and support technical expertise as well as process and material knowledge. CNC 05 is the machining centre designed for both skilled craftsmen and large-scale industry. Configurable and high-performance, it ensures a quality finish and is reliable under all working conditions.

MACHINE FEATURES

  • 5 customisable configurations for the widest range of production needs.
  • Unique technological solutions for optimal performance.
  • Reduced tool changeover time.
  • Maximum working precision maintained over time.
  • Full workability with large panels.

UNIQUE TECHNOLOGY SOLUTIONS FOR HIGH PERFORMANCE

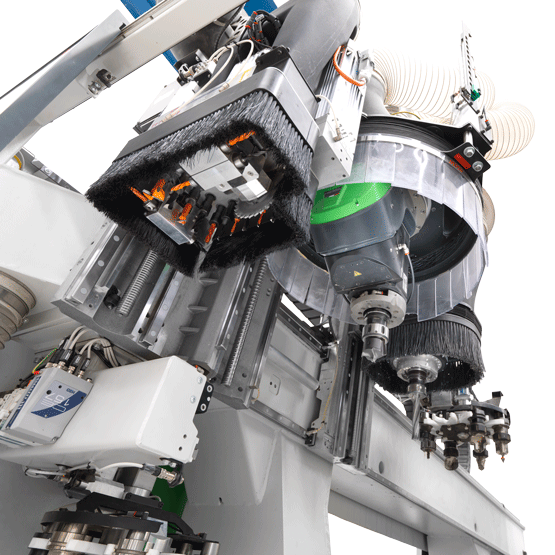

Independent Y-Axis

to perform tool changes on board
 the X carriage, using the maximum
number of tools available on the machine without affecting cycle timings.

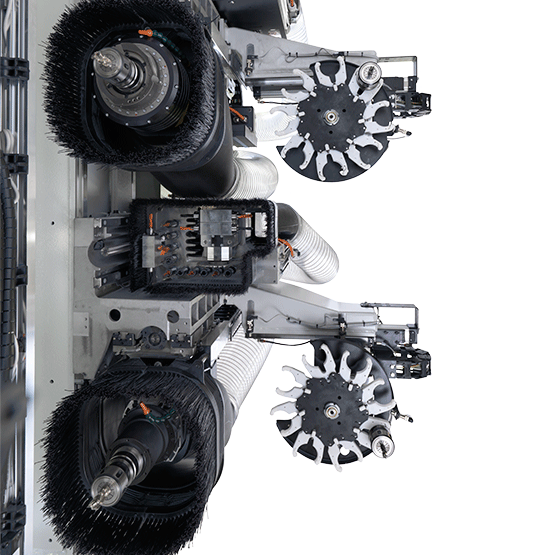

Reduce Cycle Time

due to the ability to carry out tool
changes while the machine is still
running both on the chain magazine
and on the revolvers.

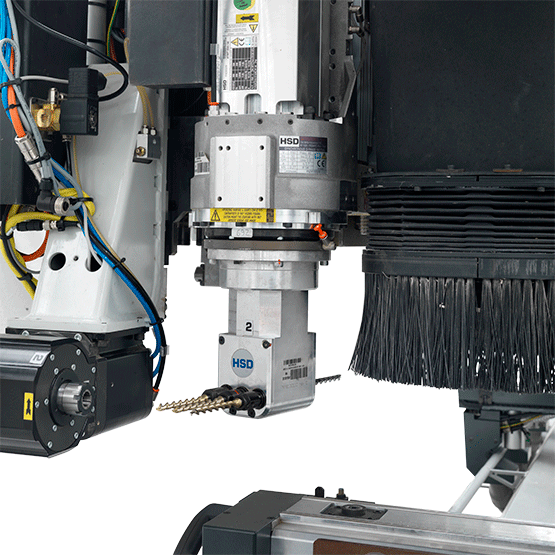

NC controlled multi-function unit

can be infinitely positioned on a 360
(degree) rotation.It can also be used
to house aggregates for specific
machining operations such as
pocketing for locks,hinges, deep
horizontal holes and edge-trimming.

A COMPLETE RANGE OF AGGREGATES FOR ALL MACHINING OPERATIONS

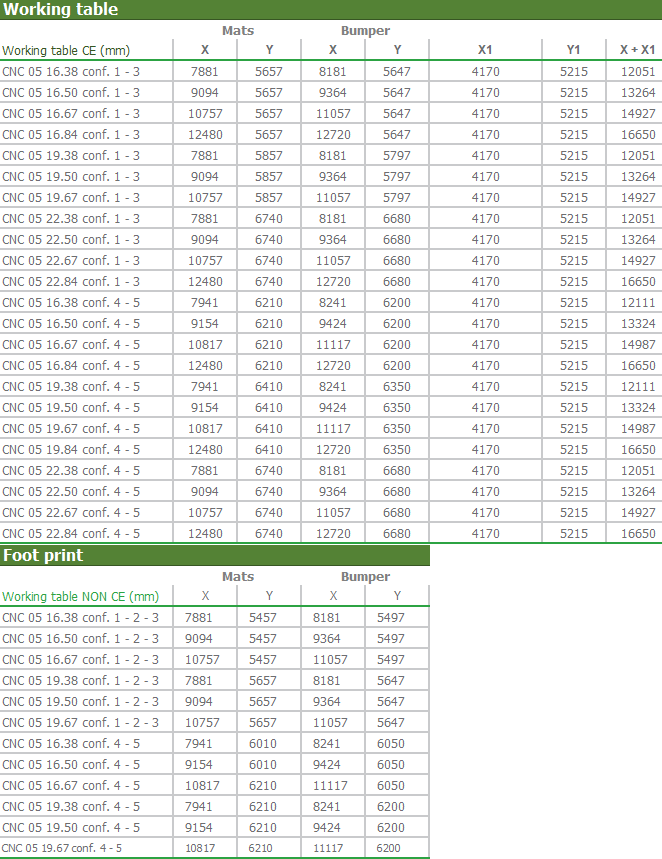

TECHNICAL SPECIFICATION
